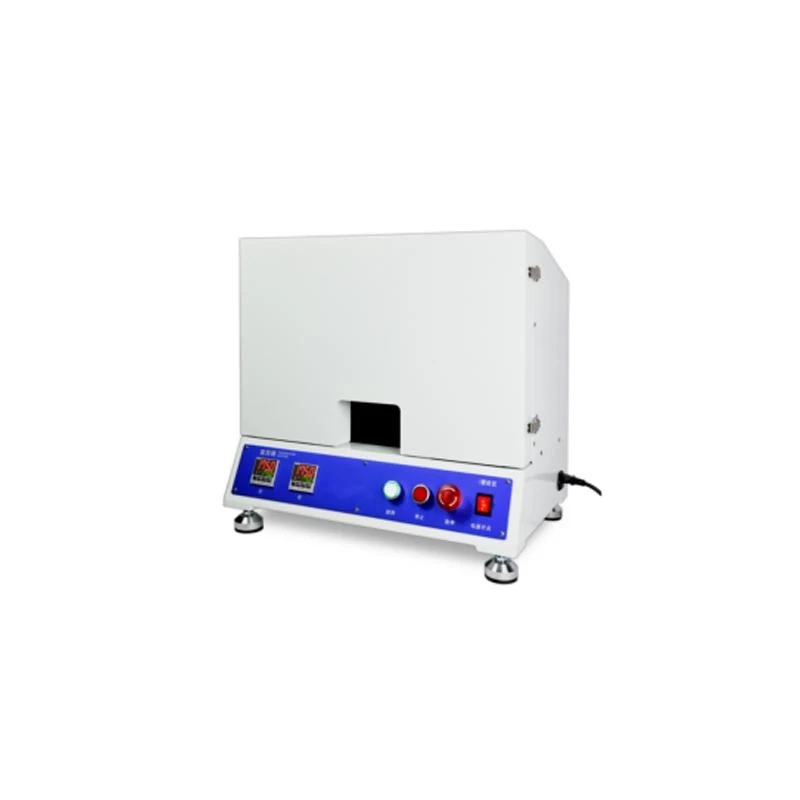

Corrugated Concora Fluter Tester medium size CMT CCT is available from LABERA.UZ for laboratory, testing, medical and industrial applications in Uzbekistan.
Contact LABERA.UZ for specifications, pricing, lead time and a commercial quotation.
| Technical Specifications | |
| Safe temperature | After working hours ≥ 2 hours, the body temperature shall not exceed 50°C. |
| Power. | AC220B, 50Hz |
| External diameter of roller groove | 228.5 ± 0.5 mm |
| Whole tooth height | 4.75 ± 0.05 mm |
| Tooth height | 2.4 ± 0.1 mm |
| Range of working pressure adjustment | (49~180)H, the working pressure shall correspond to the actual working pressure of the groove roller, the error shall not exceed ±10%. |
| Tooth length | > 19 mm |
| Number of teeth | 84. |
| Number of teeth | 16. |
| Heating mechanism | Insulation resistance of the heating stove should be >5 m |
| Model | GT-N23 |
| Real-time monitoring | With a surveillance window (155×338 mm), it can be opened at any time for real-time monitoring. |
| Spring tension | 100. N |
| Peak of teeth | 8.5 ± 0.05 mm |
| Operating speed | 4.5 rpm, error < 0.5 rpm |
| The desktop is stable and smooth, without vibration. Corner | 90 degrees. |
| The radius of the arc of the carving top | R 1.5 ± 0.1 mm |
| The radius of the tooth arc | R 2.0 ± 0.1 mm |
| Radius of lower tooth | 2.4 ± 0.1 mm |
| Size | 70±0.1 mm×40±0.1 mm| 152±0.1 mm×62±0.1 mm |
| Size (D×SH×V) | ≈ 5 40 mm×3 90 mm×55 0 mm |
| Temperature display resolution | 1℃ |
| Adjustable temperature range | room temperature ~200°C |
| Electrical environment | range of voltage fluctuations shall not exceed 10% of the nominal voltage |
| Standard operating temperature | 175 °C, the actual error should not exceed 8 °C at 177 °C |
| Standard tooth type | tooth |
| Ambient temperature | 20 ± 10 °C; no vibration, no combustible or aggressive gases |
| Thickness of roller flute | 16 ± 1 mm |
| Accuracy of temperature measurement | 0.5 points ± 1 word |
| threading | 4.75 ± 0.05 mm |
