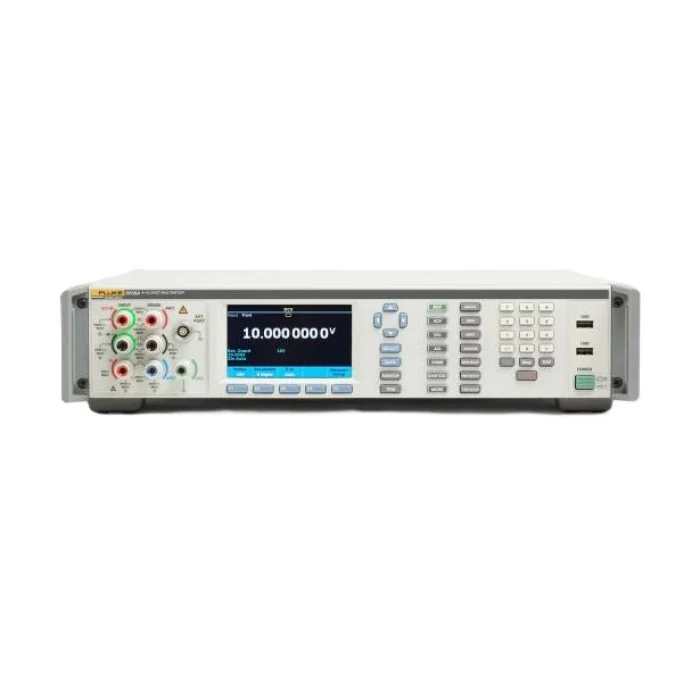

Fluke 8558A - Precision multimeter 8.5 bits is available from LABERA.UZ for laboratory, testing, medical and industrial applications in Uzbekistan.
Contact LABERA.UZ for specifications, pricing, lead time and a commercial quotation.
| Technical Specifications | |
| Weight: | 9.8 kg. |
| Possibility of calibration/self-diagnosis | Yes, internal and external calibration support, self-testing. |
| Dimensions: | 431 × 88 × 475 mm (no handles), 440 × 88 × 510 mm (with handles). |
| Humidity range during tests | <90% at +5 °C - +40 °C; <95% at 0 °C - +70 °C (without condensation). |
| Measurement/test range | DC Voltage: 100 mV – 1000 V AC Voltage: 10 mV – 1000 V (1 Hz – 10 MHz) DC Current: 10 μA – 2 A AC Current: 10 μA – 2 A (1 Hz – 100 kHz) Resistance: 1 Ω – 10 GΩ Frequency: up to 100 MHz Capacitance: 1 nF – 100 mF Temperature: PRT support and thermal steam |
| Test temperature range | Operating temperature: +5 °C - +40 °C. |
| Test frequency/speed range | 1 Hz – 10 MHz (AC Voltage), 1 Hz – 100 kHz (AC Current), up to 100 MHz (frequency). |
| Measured/controlled parameters | High-precision measurement of direct and alternating voltage, direct and alternating current, resistance, frequency, temperature, capacity, as well as signal digitization modes (Digitize V/I) with high speed. |
| Interfaces and exits: | USB, Ethernet, GPIB, port for external triggers, USB flash drive connector. |
| Protection class / safety of operation | CAT I 1000 V, CAT II 300 V, compliance with IEC61010. |
| Number and type of sensors | Built-in circuits measuring voltage, current, resistance; support for external temperature sensors (PRT, thermocouples). |
| Completement | Fluke 8558A, network cable, manual, measurement cable, software. |
| Maximum load/force | — |
| Work chamber/test table material | — |
| Test method / principle of operation | Precision digital multimeter with 8.5-bit ADC, integrating measurement method, signal digitization function and built-in filters. |
| Availability of automatic mode / programmable cycles | Yes, support for automated scripting via SCPI commands. |
| Availability of memory / data storage | Up to 15 million measurements, export to CSV. |
| Work chamber size/test table size | Approximately 300 x 300 mm (platform). |
| Measurement error/accuracy | DCV: ±(4.0 μV/V reading + 0.06 μV/V range) ACV: ±(80 μV/V + 10 μV/V) Resistance: ±(10 μΩ/Ω + 0.6 μΩ/Ω) DCI: ±(10 μA/A + 5 μA/A) ACI: ±(300 μA/A + 100 μA/A) Frequency: ±0.5 μHz/Hz) |
| Software/PC Compatibility: | Compatible with MET/CALTM, Fluke 8508A and Keysight 3458A emulation. |
| Heating system | — |
| Cooling/ventilation system | Built-in passive and active cooling for stability. |
| Lubrication/media supply system | — |
| Deformation rate / heating-cooling rate | — |
| Country of production: | China |
| Type of display/indication | Color graphic display with trend modes, histograms and FFT. |
| Type of test drive | — |
| Control type: | Digital, touch, computer (via GPIB, USB, Ethernet interfaces). |
| Power supply | 100–120 / 200–240 V AC, 50/60 Hz. |
