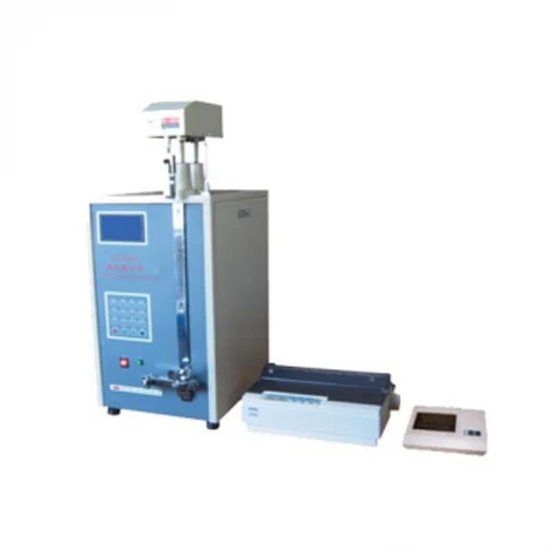

Table tester strength of a single strand GT-A02B

Table tester strength of a single strand GT-A02B

rating
0.00 so'm

  • Brand: GESTER
  • Product Code:3c30bc3ec059
  • Availability:Pre-Order

Table tester strength of a single strand GT-A02B is available from LABERA.UZ for laboratory, testing, medical and industrial applications in Uzbekistan.

Contact LABERA.UZ for specifications, pricing, lead time and a commercial quotation.

Technical Specifications
Pr voltage 0 ~ 150 cN (adjustable)
Weight. 60kg
Clamp holder Self-tightening
Test range 0~1000cN. 0~3000cN. 0~5000cN
Relative elongation range and accuracy 400 1mm
Model GT-A02B
Applicable range Thread test, tensile elongation and fracture elongation
Duration of sampling 100 mm, 250 mm, 500 mm
Working Patton Computer control, digital display of test data and tests, printing of test results
Sizes. 370x530x930 mm (DhShV)
Regulated 50~1000 mm/min
Stretching speed Constant speed: m/min, 250 mm/min, 500 mm/min Adjustable: 50~1000 mm/min
Accuracy of measurement ≤±O.2%F.S
Power supply AC 220 V 50Hz
